Content Sources

Content Sources provides a central location for users to define yum repositories, learn about the contents of those yum repositories, and for other applications to be able to reuse this information. Image Builder, for example, supports using repositories defined in Content Sources for building images.

Architecture

Version: 2.0

Note: this document is targeting the desired architecture for content-sources with snapshotting.

This application consists of these parts:

• Rest Api
  • Used for our frontend or for other applications to interact with ours
• Postgresql Database

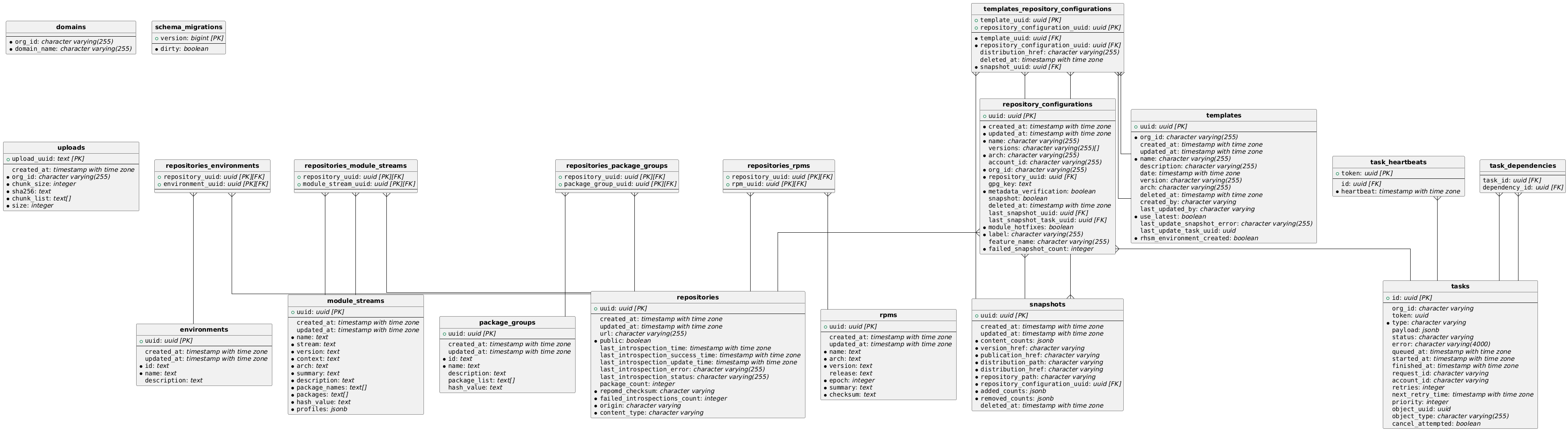

  • Used for storing our data (database model)
• Kafka Platform
  • Used to push messages for notification purposes. This is no longer used for tasking.
• Task Worker
  • Pulls tasks from the database and executes them
  • For example, at Repository creation or update time, the worker will fetch metadata from the yum repository and introspect it to learn about its packages.
• Redis cache
  • Used to cache rbac requests to decrease latency
• Pulp Server
  • Used for creating snapshots of repositories
  • Consists of a database, API server, content server, and workers
  • (Pulp’s Architecture)[https://docs.pulpproject.org/pulpcore/components.html]

Deployments

When deploying within kubernetes, we recommend:

• Minimum 3 pods for the API
  • Each pod consumes about 30 MB of memory
• Minimum 3 pods for the Task Worker
  • Each pod consumes about 35 MB of memory

Data Loss

• Database: If the database is lost, all user data is lost and must be restored from backup.
• Kafka: If the contents of the kafka queue are lost, a newly created repository will show as ‘Pending’ and introspection will be delayed until the introspection cron job runs (currently every eight hours).
• redis: If the contents are lost, latency will be higher temporarily until a good cache is built back.
• Pulp Server: If the pulp database is lost, it must be restored from backup.

External Dependencies

• RBAC
  • https://github.com/RedHatInsights/insights-rbac
  • If unavailable, user actions cannot be performed
• Database
  • If unavailable, user actions cannot be performed, no introspections can take place
• Redis
  • If unavailable, requests to the API will have a higher latency
• Kafka broker
  • If unavailable, no notifications can be sent
• Pulp
  • If unavailable, no snapshots can take place, content cannot be served

Routes

All routes are based off the same root (/api/content-sources/v1/) and can be viewed via our api specification, available here
